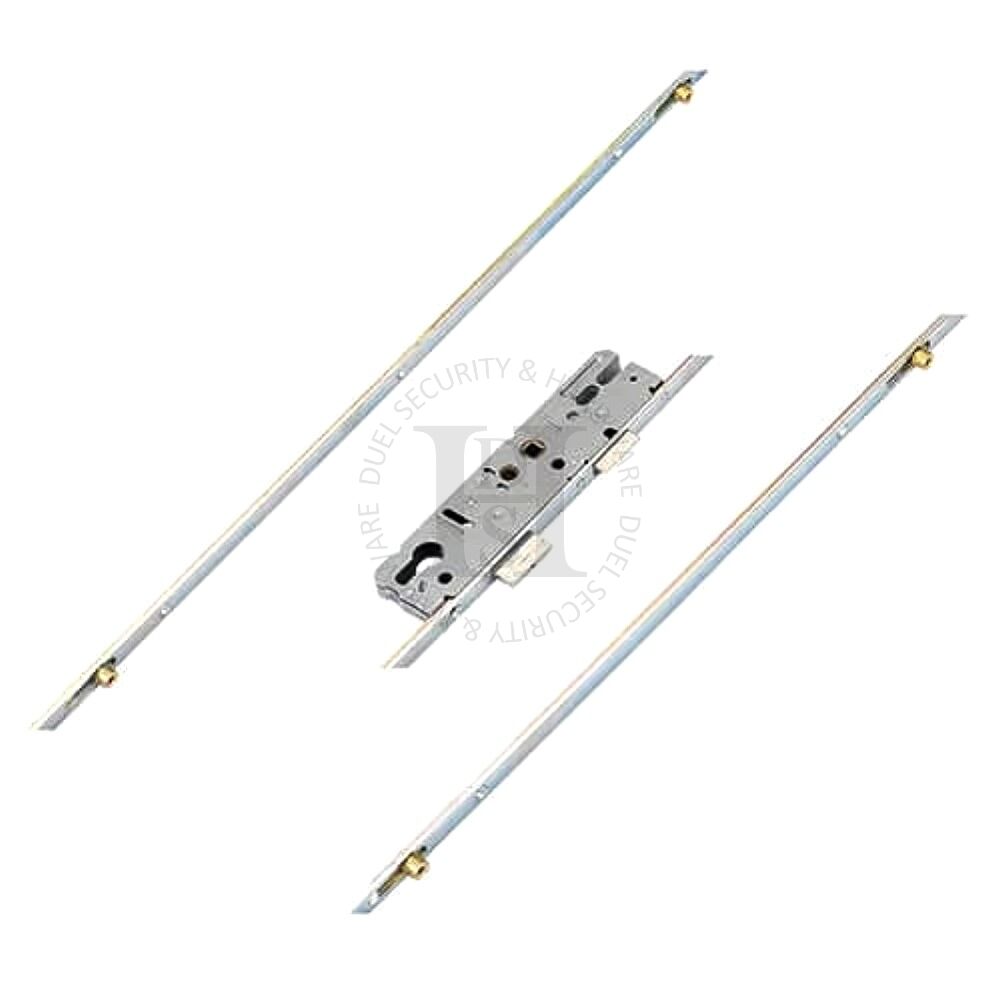

KFV AS4050 Multipoint Lock 45mm Backset

KFV 1 piece, latch, deadbolt and rollers

Specification

• Operation - Lift lever

Additional Information

• Older KFV multipoint locks have no markings on the faceplate
• All KFV multipoint Locks will have a case height of 210mm with a small slot at the top of the case
• Distance between outer rollers - 1630mm
• Distance between i nner rollers - 670mm
• 24mm U-Rail versions are obsolete, we can advise that if you have a rivet gun it is possible on certain versions to remove the case from a 16mm flat rail version and re-rivet to the existing 24mm U-Rail version

Latch Reversal

• Push in latch and undo screw in back of lockcase to remove latch, reverse and re-instate

Versions Available

• AS405025 - 25mm Backset - 92mm Centres - 16mm Flat Faceplate - 8mm Spindle
• AS405035 - 35mm Backset - 92mm Centres - 16mm Flat Faceplate - 8mm Spindle
• AS405045 - 45mm Backset - 92mm Centres - 16mm Flat Faceplate - 8mm Spindle
