Details

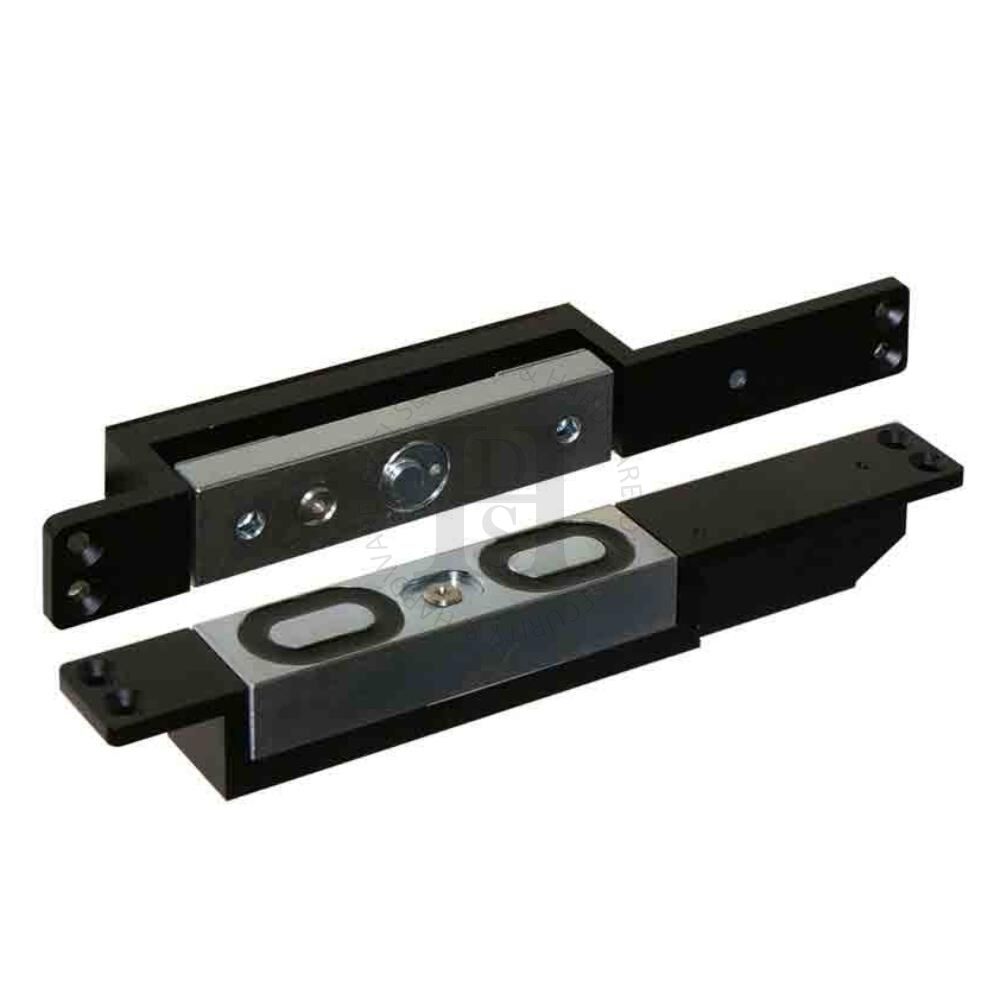

The Deedlock AEM/SHEAR-30 mortice shear electro magnetic locks provide a stronger holding force due to a central shear pin. They can be installed on various kinds of doors, such as wooden, steel or aluminium, exit doors.

Designed for flush fixing into the frame and door with optional surface housing for narrow door thickness. In the event of a power failure the lock will release (fail safe option). There is also an adjustable 16sec timer to allow the door to close before the power is applied

More Information

More Information
Technical Description	Operating Voltage - 12-24V DC Current Draw - 12V DC – Pull in:1.9A, Holding: 0.55A (Note: Min 3A PSU Required) 24V DC – Pull in:1.2A, Holding: 0.35A (Note: Min 2A PSU Required) Magnetic Bond Sensor Monitor Output - (SPDT rated 1A/30V DC) Indicates the locked or unlocked status Locking time delay: 1-6 seconds adjustable Operating Temperature - -30°C~+55°C Humidity: 0~95% non-condensing Shear Holding Force - AEM/SHEAR-35 – 2,000lbs Special finishes for magnet and armature plate - Zinc plated Door Gap (Between the lock and armature plate) - 3mm (1/8”) maximum. (Between the lock and armature plate housing) Net Weight - AEM/SHEAR-35: 1.8Kg
SKU	DEE-AEM/SHEAR-30
Manufacturer	SECUREFAST
