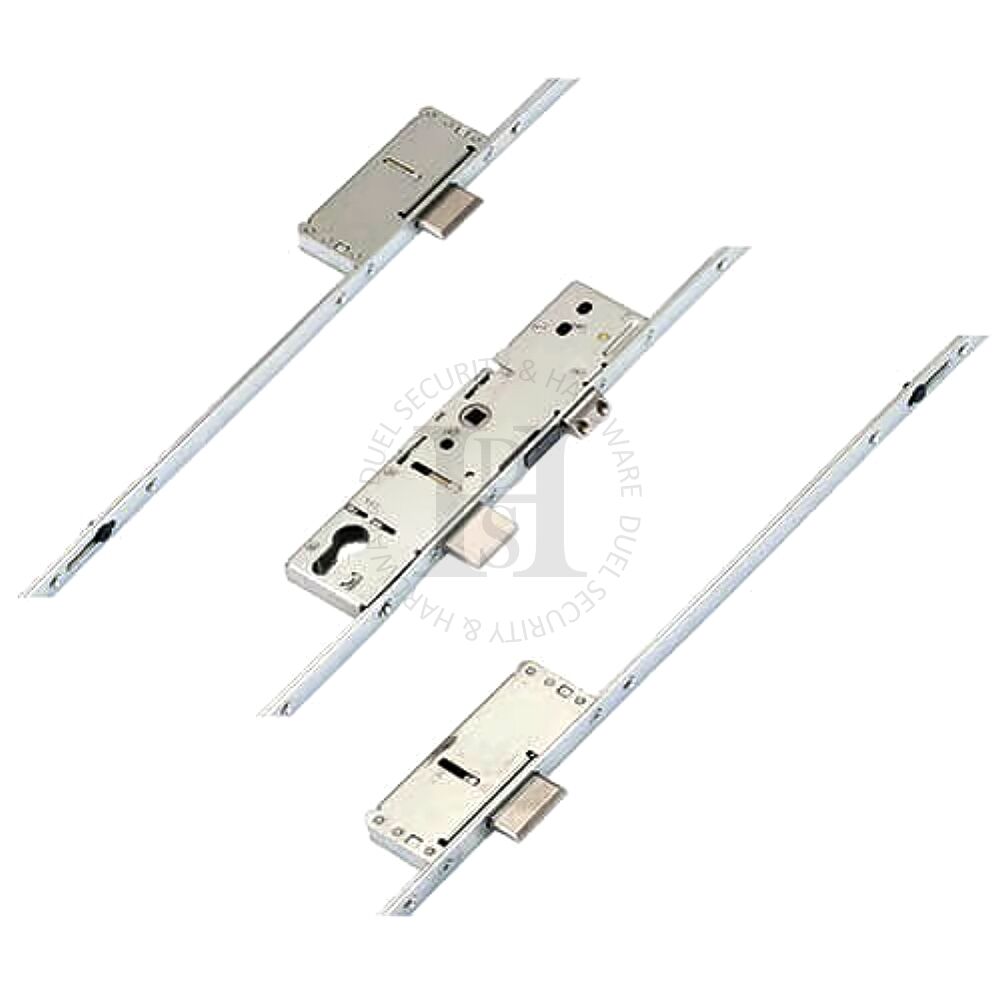

ERA 54450019AA Multipoint Lock 45mm Backset - Opt1

ERA 1 piece, latch and 3 Deadbolts

Specification

• Operation: Lift lever or split spindle nightlatch
• Euro profile system

Additional Information

• These locks are available in 2 options with different distances between the locking points
• Please refer to the picture table for the dimensions

Latch Reversal

• Undo screw in latch bolt and twist latch

Nightlatch Function Reversal Instructions

• Remove latch to reveal a small screw, use a small flat bladed screwdriver to turn screw 180°

Versions Available

• 54300019AA - 30mm Backset - 92mm Centres - Flat 16mm Faceplate - 8mm Split Spindle - Option 1
• 54350019AA - 35mm Backset - 92mm Centres - Flat 16mm Faceplate - 8mm Split Spindle - Option 1
• 54450019AA - 45mm Backset - 92mm Centres - Flat 16mm Faceplate - 8mm Split Spindle - Option 1
