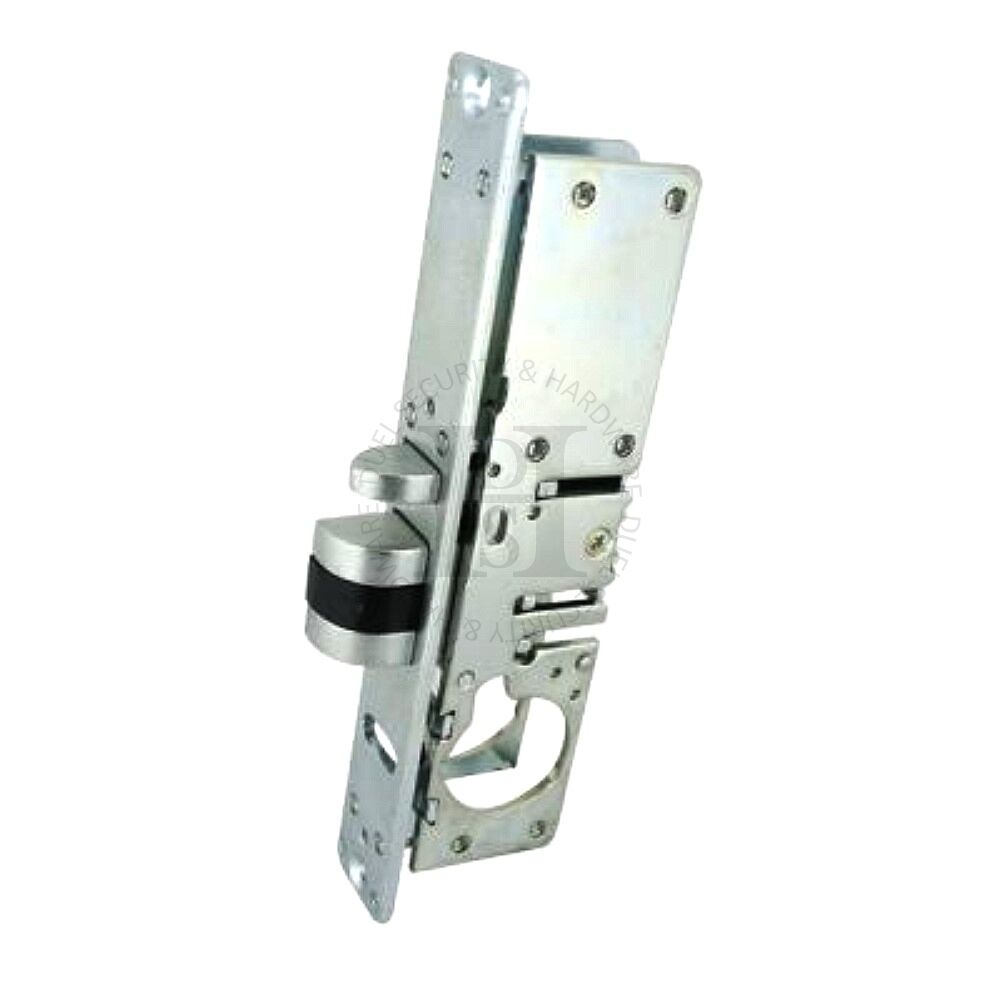

4710 38mm Screw-In Deadlatch Case & Flat Forend

Specification

• Mechanism - Screw-In Cylinder (sold Separately)
• Case Sizes - 38mm, 41mm, 45mm or 54mm
• Case Finish - Plated Steel
• Forend Finish - Satin Anodised Aluminium
• Handing: Reversible

Features

• Latch is automatically deadlocked when door is in the closed position
• Comes complete with flat faceplate

Operation

• Reversible latchbolt withdrawn from either side by screw-in cylinder or screw-in turn

38mm Lock Dimensions

• Case ~Depth - 38mm
• Backset - 22mm
• Case Height - 173mm
• Forend Length - 174mm
• Forend Width - 26mm

41mm Lock Dimensions

• Case Depth - 41mm
• Backset - 24mm
• Case Height - 173mm
• Forend Height - 174mm
• Forend Width - 26mm

45mm Lock Dimensions

• Case Depth - 45mm
• Backset  - 28mm
• Case Height - 173mm
• Forend Height - 174mm
• Forend Width - 26mm

54mm Lock Dimensions

• Case Depth - 54mm
• Backset - 38mm
• Case Height - 173mm
• Forend Height  - 174mm
• Forend Width - 26mm
